Spoiler Cap, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Warm the outer cap -2- using the : VAG1416  and pry up with a scraper from the inner cover -1- at the same time carefully loosen the bonding.

GWWA66-12297Courtesy of AUDI OF AMERICA, LLC

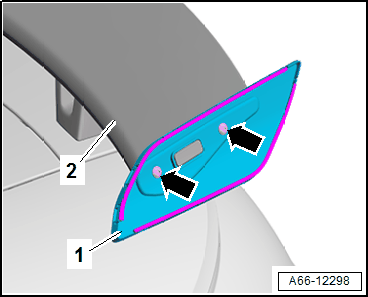

-- Remove the bolts -arrows-.

GWWA66-12298Courtesy of AUDI OF AMERICA, LLC

-- Warm the inner cap -1- using the : VAG1416  and pry up with a scraper from the spoiler -2- at the same time carefully loosen the bonding.
