Spoiler Cap, Removing And Installing: Installing

Install in reverse order of removal and note the following:

• The vehicle and the spoiler must be at room temperature.
• The adhesive surfaces must be free of dirt and grease.

-- Remove the adhesive residue on the spoiler.

-- Clean the painted side of the adhesive surface with Cleaning Solution: D 009 401 04  and let dry.

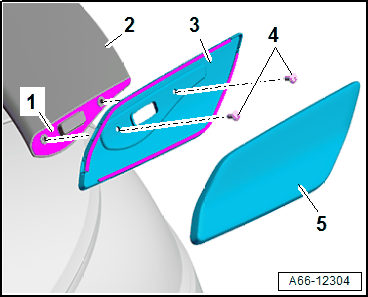

-- Remove the tape peel-off backing and adhere the seal -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Position the inner cap -3- on the spoiler blade -2- and secure with the bolts -4-.

-- Push the outer cap -5- until it clicks into place on the inner cover.
