Buffer, Removing And Installing: Installing

WARNING: This page is about a different variant/trim than selected.

Install in reverse order of removal and note the following:

-- Remove the adhesive residue from the body.

-- Clean the painted side of the adhesive surface with Cleaning Solution: D 009 401 04  and let dry.

-- Check the seal -2- for damage.

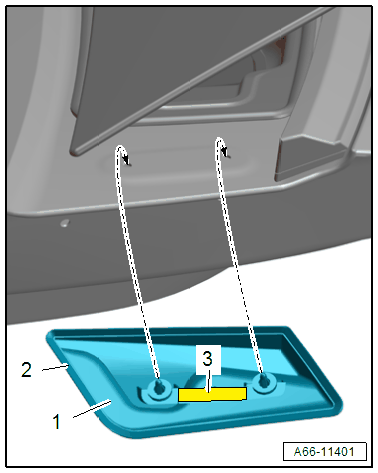

GWWA66-11401Courtesy of AUDI OF AMERICA, LLC

-- Slowly remove the protective film -3- from the adhesive tape.

-- Position the buffer -1- and press the clips on until they engage audibly.
