Front Emblems, Removing And Installing, Version 2: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the lock carrier cover. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .

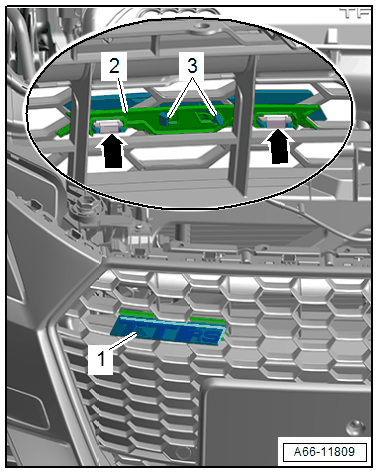

-- Pry out the clip -arrows-.

GWWA66-11809Courtesy of AUDI OF AMERICA, LLC

-- Release the retainers -3-.

-- Remove the TTRS name badge -1- and remove the mount -2-.
