Front Emblems, Removing And Installing, Version 1: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the center reinforcement brace. Refer to REINFORCEMENT BRACE, REMOVING AND INSTALLING .

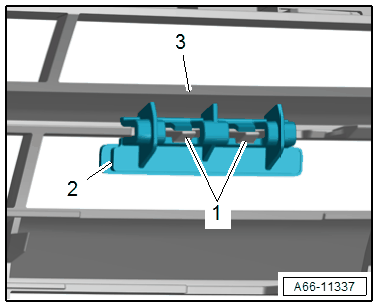

-- Release the catches -1-.

GWWA66-11337Courtesy of AUDI OF AMERICA, LLC

-- Remove the quattro name badge -2- from the radiator grille -3-.
