Side Sill Trim Panel, Removing And Installing: Installing
Install in reverse order of removal and note the following:
-- Insert the rear bracket -1- in the side sill trim panel cut-out -arrow-.
- The vehicle and the trim panel must be at room temperature.
- The adhesive surfaces must be free of dirt and grease.
Installation Preparation for Reinstallation:
-- Remove adhesive residue from the trim panel.
-- Clean the plastic side of the adhesive surface with Cleaning Solution: D 009 401 04 and let dry.
-- Apply Plastic Primer: D 366 PR1 A1 on the plastic side of the adhesive surface and let dry until the solvent has completely evaporated.
-- Apply double-sided tape to the same location. Refer to Parts Information.
- Apply the adhesive tape within 60 minutes.
Continuation:
-- Remove the adhesive residue from the body.
-- Clean the painted side of the adhesive surface with Cleaning Solution: D 009 401 04 and let dry.

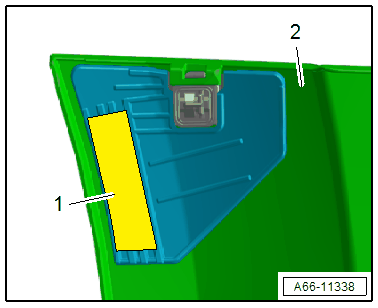

-- Remove the protective film from the adhesive tape -1-.
-- Place the side sill trim panel -2- on the mount and push in the clips until they engage audibly.
-- Push the side sill trim panel on the bonding with the Roller : 3356 .
- Vehicle resting time is at least 30 minutes at room temperature.
