Suppressor -C24-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different variant/trim than selected.
-- Turn off the ignition and disconnect the ground cable from the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .

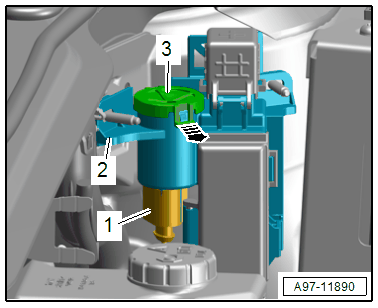

-- Disconnect the connector -1-.
-- Release the retainers in direction of -arrow- and remove the cover -3-.
-- Push the suppressor upward and out of the housing -2- from below and remove it.
