Fuse Panel A -SA-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different variant/trim than selected.

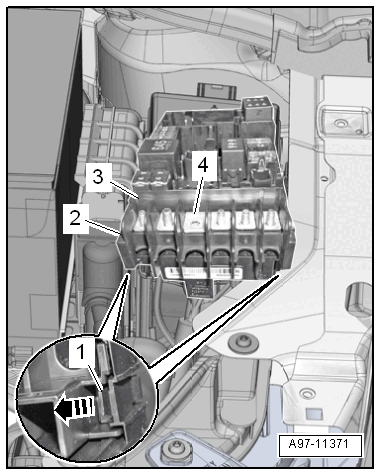

-- Remove fuse panel B. Refer to Fuse Panel B -SB- IN E-BOX, REMOVING AND INSTALLING .
-- Remove the mounting bracket -4- upward from the fuse panel B.
-- Release the tabs -1- in direction of -arrow- and remove fuse panel A -2- downward from fuse panel B -3-.
