Control Module Bracket, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- North American market-specific: remove the driver side knee airbag. Refer to KNEE AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
-- Remove fuse panel C and set aside. Refer to Fuse Panel C -SC- UNDER LEFT INSTRUMENT PANEL, REMOVING AND INSTALLING .
-- If installed: Remove the parking aid control module/parallel parking assistance control module. Refer to Parking Aid Control Module -J446-, REMOVING AND INSTALLING .

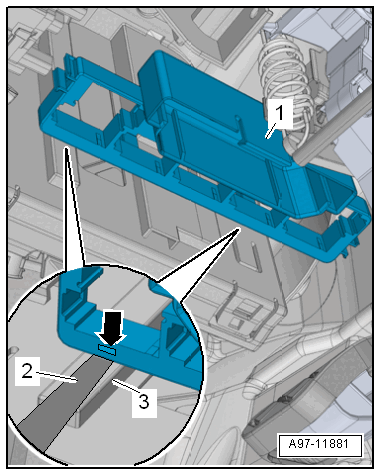

-- To loosen the retainers, insert a 0.9 mm feeler gauge -2- behind the opening -arrow- as illustrated.
-- Remove the bracket -1- downward from the bracket for the vehicle electrical system control module -3-.
