Component Location Overview - Relay Panels, Fuse Panels And E-Box

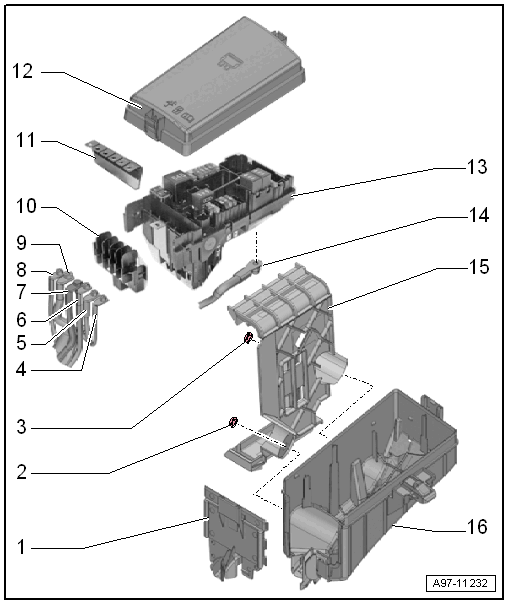

Fig 1: Exploded View Of Relay Carriers, Fuse Carriers & E-Box

Courtesy of AUDI OF AMERICA, LLC

1. Front Cover
   • For E-box
2. Nut
   • 9 Nm
3. Nut
   • 9 Nm
4. Wire
   • 4.5 Nm
   • For radiator fan
5. Wire
   • 4.5 Nm
   • For terminal 30
6. Wire
   • 4.5 Nm
   • For electromechanical power steering
7. Wire
   • 6 Nm
   • For battery B+
8. Wire
   • 4.5 Nm
   • For terminal 30
9. Wire
   • 6 Nm
   • For generator
10. Fuse Panel A -SA-
    • Removing and installing. Refer to Fuse Panel A -SA-, REMOVING AND INSTALLING .
11. Mounting Bracket
    • Removing and installing. Refer to Fuse Panel A -SA-, REMOVING AND INSTALLING .
12. Cover
    • For E-box
13. Relay and Fuse Panel B -SB-
    • With connecting bracket for fuse panel A
    • Removing and installing. Refer to Fuse Panel B -SB- IN E-BOX, REMOVING AND INSTALLING .
14. Wire
    • 6 Nm
15. Bracket
    • For engine control module
16. E-Box
    • Removing and installing. Refer to E-BOX, REMOVING AND INSTALLING .
