Right A-Pillar Connector Station, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Turn off the ignition and disconnect the ground cable from the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .
-- Remove the A-pillar lower trim panel. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

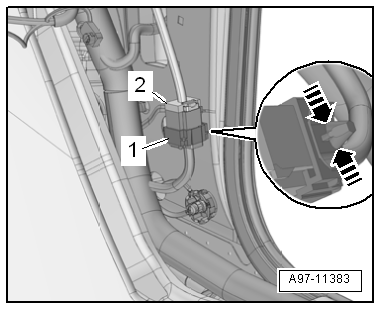

-- Release the retainers -arrows- and disengage the connector station -1- at the A-pillar.
-- Disconnect the connector -2-.
-- Release the retainer -3- in direction of -arrow- and push the connector terminal -2- out of the bracket -1-.
NOTE:
Check the exact assignment in the current wiring diagram. Refer to the appropriate Wiring Diagram
