Radiator Air Duct, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

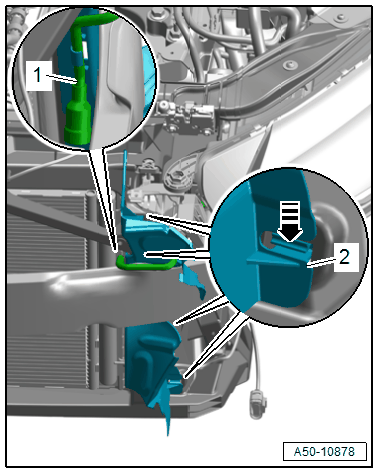

-- Left: disconnect the connector -1- from the outside air temperature sensor.
-- TT/TTS: free up the wiring harness -2- from the lock carrier -arrow-.
-- Free up the breather hose -1- for the headlamps.
TT/TTS:
-- Open the tabs -arrow-.
-- Pivot the air duct -2- to the vehicle center and remove.
TTRS:
-- Remove the air duct from the mount, pivot to the center of the vehicle and remove.
