Overview - Lock Carrier Bracing

WARNING: This page is about a different variant/trim than selected.

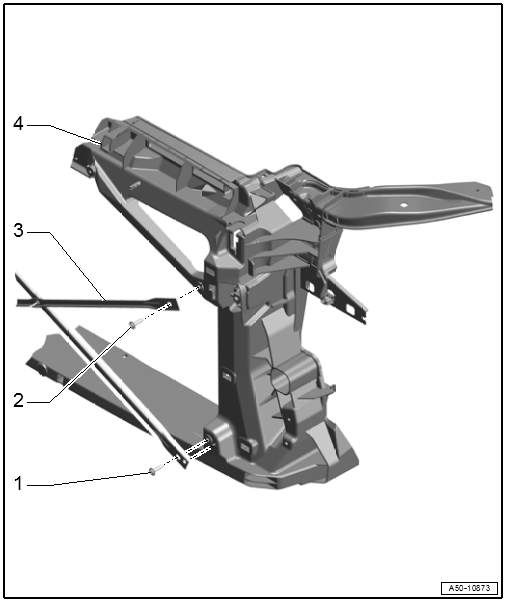

GWWA50-10873Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • 8 Nm
  2. Bolt
    • 8 Nm
  3. Brace
  4. Lock Carrier
