Bumper And Headlamp Mount, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Remove the headlamps. Refer to HEADLAMP, REMOVING AND INSTALLING .

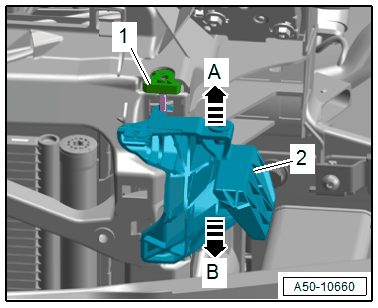

-- Remove the clip -1- from the lock carrier.
-- Push the mount -2- upward in direction of -arrow A- and disengage toward the front in direction of -arrow B-.
