Rear Fender Cover, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the front fender cover. Refer to FRONT FENDER COVER, REMOVING AND INSTALLING .

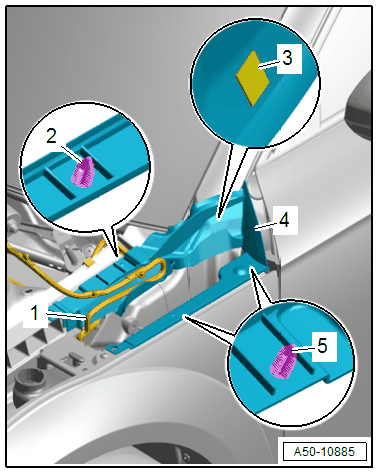

-- Carefully warm the rear cover in the area of the bonding -3- with the :VAS1978/14A .
-- Carefully loosen the bonding and at the same time remove the rear cover.
-- Free up the wiring harness -1-.
-- Remove the clips -2 and 5- with the :80-200 .
-- Remove the rear cover -4-.
