Rear Fender Cover, Removing And Installing: Installing

WARNING: This page is about a different variant/trim than selected.

Install in reverse order of removal and note the following:

-- Remove the adhesive residue from the body.

-- Clean the painted side of the adhesive surface with Cleaning Solution:D 009 401 04  and let dry.

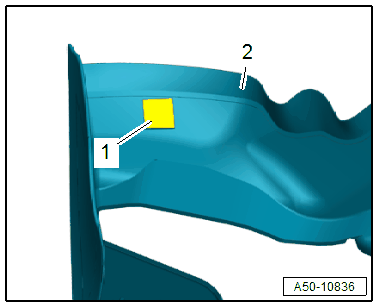

-- Remove the protective film from the adhesive tape -1- and press on the rear cover -2- with the :3356  .

GWWA50-10836Courtesy of AUDI OF AMERICA, LLC
