Front Fender Bracket, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .
-- Remove the sealing piece. Refer to SEALING PIECE, REMOVING AND INSTALLING .
-- Remove the seal.

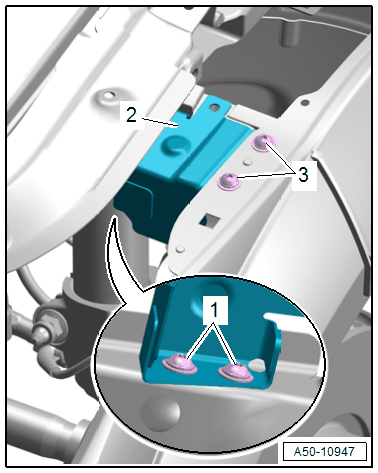

-- Remove the bolts -1 and 3-.
-- Remove the front bracket -2-.
