Fender Brace, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the headlamps. Refer to HEADLAMP, REMOVING AND INSTALLING .
-- For vehicles with a TDI engine loosen and set aside the fuel filter. Refer to the appropriate service information .
-- Remove the air filter housing. Refer to OVERVIEW - AIR FILTER HOUSING .
-- Free up the wires -2- on the air filter housing bracket -1- using the :80-200 .
-- Remove the bolts -arrows- and the bracket.

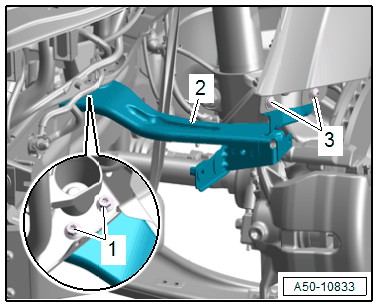

-- Remove the bolts -1 and 3-.
-- Remove the fender brace -2-.
