End Panel, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the front door. Refer to DOOR, REMOVING AND INSTALLING .

-- Remove the rear cover for the fender. Refer to REAR FENDER COVER, REMOVING AND INSTALLING .

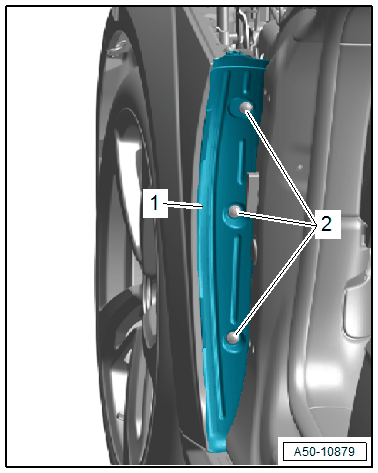

-- Remove the expanding rivets -2-.

GWWA50-10879Courtesy of AUDI OF AMERICA, LLC

-- Remove the end panel -1- to the rear.
