Plenum Chamber Cover, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the windshield wiper arms. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING .

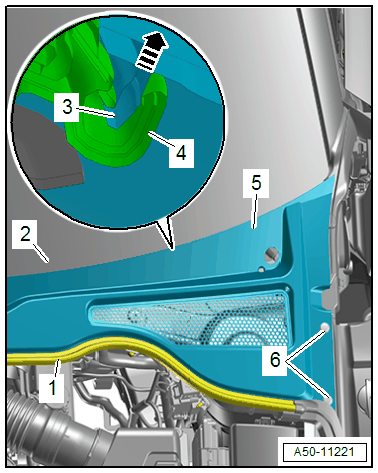

-- Remove the seal -1-.
-- Remove the clips -6- if equipped.
-- Coat the transition between the windshield -2- and the plenum chamber cover -5- with some soapy water. Starting at the window edge, carefully remove the plenum chamber cover vertically upward from the retainer on the windshield.
-- Remove the plenum chamber cover -5- by carefully removing the plenum chamber cover tab -3- in the direction of the -arrow- from the windshield mount -4-.
