Plenum Chamber Bulkhead, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the lock washer -1-.

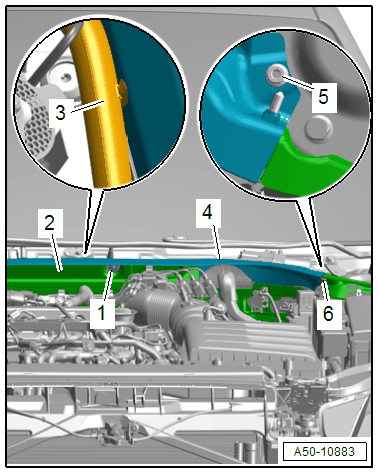

GWWA50-10883Courtesy of AUDI OF AMERICA, LLC

-- Push the heat shield -2- to the side.

-- Remove the bolt -6- and nut -5-.

-- Free up the wiring harness -3-.

-- Remove the plenum chamber bulkhead -4- upward.
