Plenum Chamber Bulkhead Cover, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the plenum chamber bulkhead. Refer to PLENUM CHAMBER BULKHEAD, REMOVING AND INSTALLING .

-- Remove the sealing piece. Refer to SEALING PIECE, REMOVING AND INSTALLING .

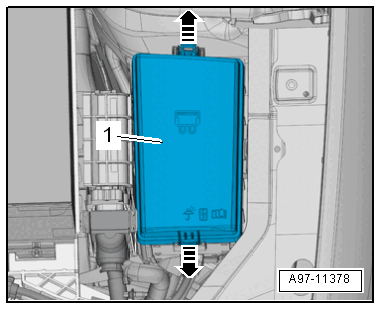

-- Left: press the release button in direction of -arrows- and remove the cover -1- for the engine compartment E-box.

Courtesy of AUDI OF AMERICA, LLC

-- Right: free up the wiring harness.

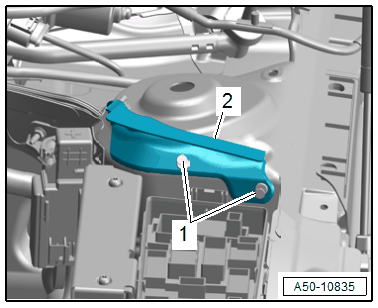

-- Remove the expanding clips -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the plenum chamber bulkhead cover -2-.
