Radiator, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING .
-- Remove the fan shroud. Refer to FAN SHROUD, REMOVING AND INSTALLING .
-- Lift the clamp -arrow- and remove the left upper coolant hose from the radiator.
-- Remove the air ducts -1 and 2-.
CAUTION:
Risk of damaging the retainers due to improper handling.
- Carefully release the retainers.

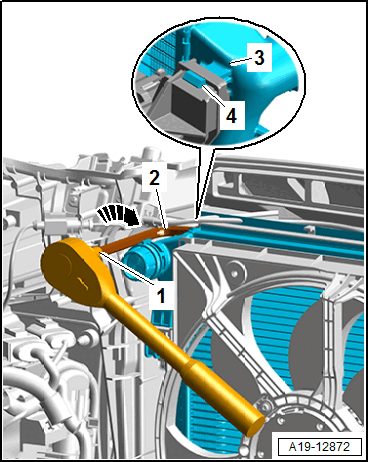

-- Carefully release the locking tab -4- with hex fitting long reach special wrench 6 mm -item 6- with socket 6 mm -item 1- -arrow- are remove the radiator -3- carefully toward the rear from the charge air cooler.
-- Repeat the process on the opposite side and remove the radiator.
