Coolant Recirculation Pump -V50-

WARNING: This page is about a different variant/trim than selected.

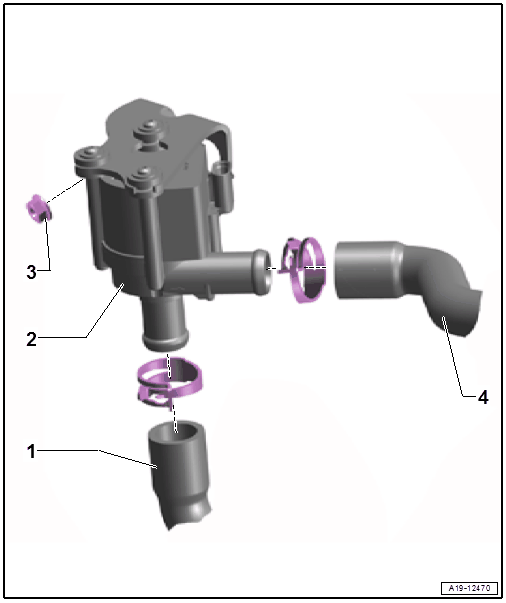

GWWA19-12470Courtesy of AUDI OF AMERICA, LLC
  1. Coolant Hose
  2. Coolant Recirculation Pump -V50-
  3. Nut
    • 9 Nm
  4. Coolant Hose
