Transmission Coolant Valve -N488-, Version 1

WARNING: This page is about a different variant/trim than selected.

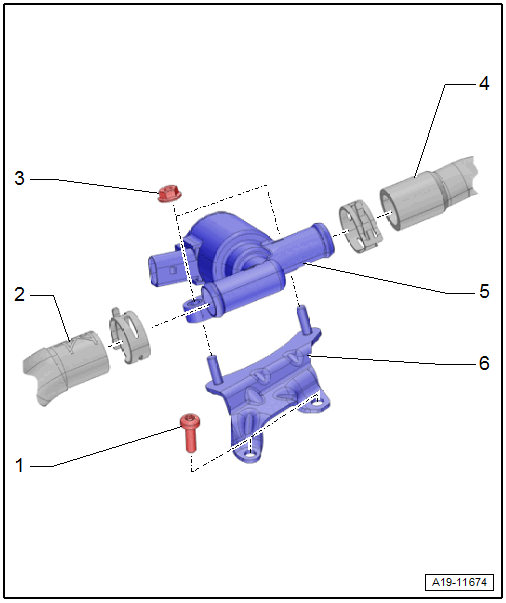

Fig 1: Exploded View Of Transmission Coolant Valve -N488-, Vehicles With Dual-Clutch Transmission
GWWA19-11674Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • 9 Nm
  2. Coolant Hose
  3. Nut
    • 9 Nm
  4. Coolant Hose
  5. Transmission Coolant Valve -N488-
  6. Bracket
    • For the Transmission Coolant Valve -N488-
