Coolant Shut-Off Valve -N82-

WARNING: This page is about a different variant/trim than selected.

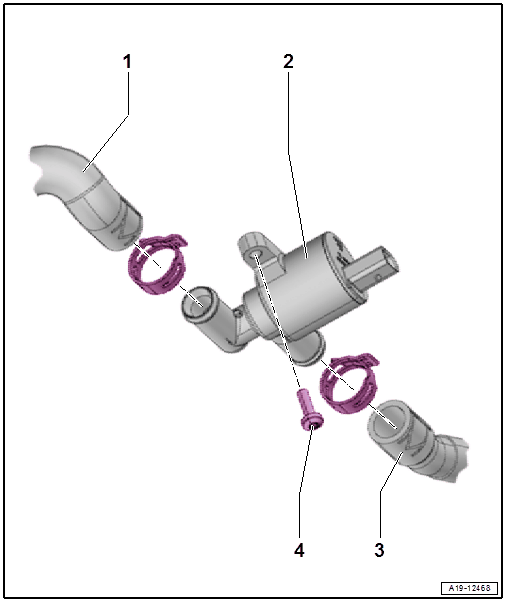

Fig 1: Coolant Valve Exploded View
GWWA19-12468Courtesy of AUDI OF AMERICA, LLC
  1. Coolant Hose
  2. Coolant Shut-Off Valve -N82-
  3. Coolant Hose
  4. Bolt
    • 9 Nm
