Engine Coolant Temperature Sensor -G62-, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .
Vehicles with Coolant Shut-Off Valve -N82- :

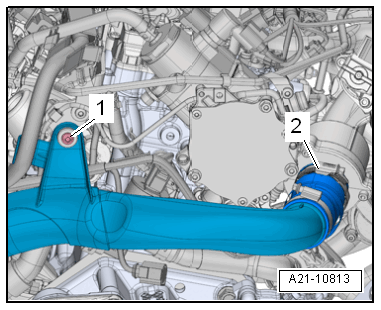

-- Loosen the hose clamp -2-.
-- Remove the bolt -1- and push the left air duct pipe slightly to the left.
Continuation for All Vehicles:
All additional procedures. Refer to: Engine Coolant Temperature Sensor -G62-, REMOVING AND INSTALLING .
