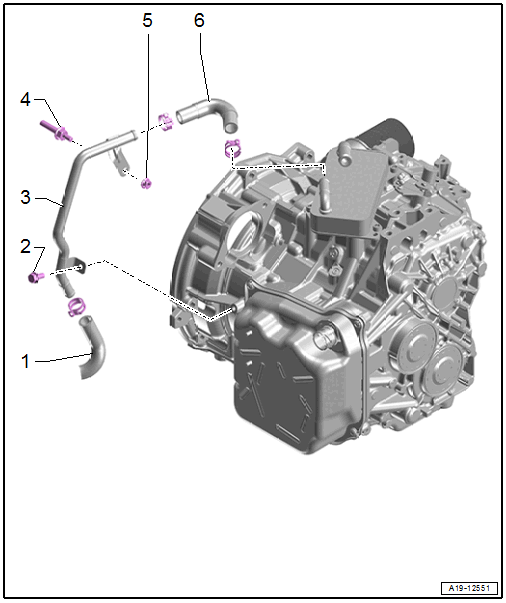

Transmission Coolant Pipes
WARNING: This page is about a different variant/trim than selected.
- Coolant Hose
- Bolt
- 20 Nm
- Transmission Coolant Pipe
- Equipped on some models
- Removing and Installing. Refer to TRANSMISSION COOLANT PIPE, REMOVING AND INSTALLING .
- Bolt
- Tightening specification. Refer to OVERVIEW - STARTER .
- Nut
- 20 Nm
- Coolant Hose
