Upper Coolant Pipe, Removing And Installing: Removing

-- Remove the ignition coil for cylinder "3". Refer to IGNITION COILS, REMOVING AND INSTALLING .

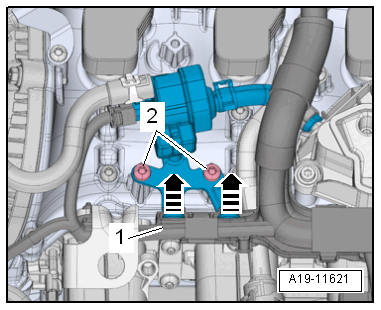

-- Release the retainers in direction of -arrows- and remove wiring duct -1- from bracket.

Fig 1: Identifying Bracket And Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Clamp off the coolant hoses -arrows- with the :3094  .

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the clamps and remove the coolant hoses.

-- Remove the bolts -1- and remove the upper coolant pipe.
