Locking Mechanism Trim, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

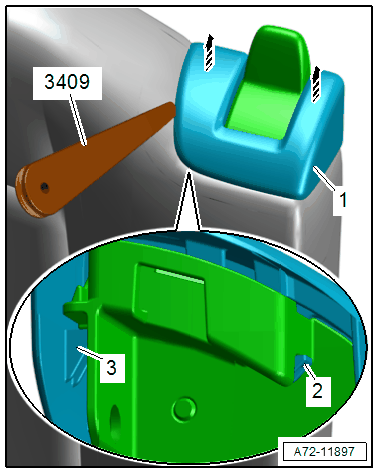

-- Unclip the catches -2 and 3- from the locking mechanism trim -1- with the : 3409  alternating from side to side in direction of -arrows-.

GWWA72-11897Courtesy of AUDI OF AMERICA, LLC

-- Remove the trim upward from the retainer and remove.
