Bench Seat/Single Seat, Removing And Installing: Installing

WARNING: This page is about a different variant/trim than selected.

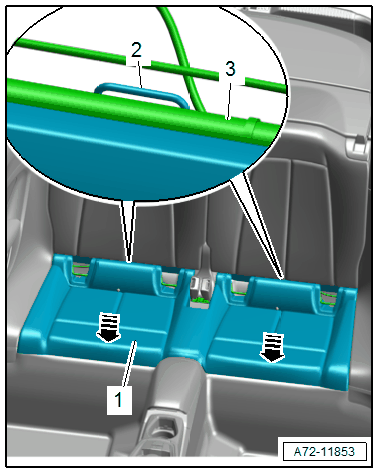

GWWA72-11853Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal and note the following:

-- Install the bench seat -1- and engage the seat frame -2- on the backrest frame -3-.

-- Push the rear bench seat downward in direction of -arrows- until it engages audibly in the mount.
