Trim/Handle For Seat Depth Adjuster, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Move the front seat all the way to the rear and then into its highest position.
-- Move the seat depth adjuster all the way forward.
-- Push together the tabs in direction of -arrows- on the trim -1- with pliers or release with the : 3409 .
-- Remove the trim from the seat depth adjuster.

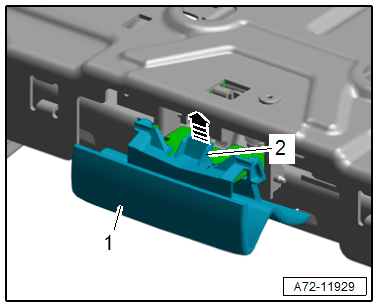

-- Release the catch -2- upward in direction of -arrow- and remove the handle -1- for the seat depth adjuster from the handle mount.
