Seat Forward/Back Adjustment Handle, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Bring the front seat all the way to the rear and then into its highest position.
-- Equipped on some models: remove the storage compartment. Refer to OWNER'S MANUAL, FIRE EXTINGUISHER AND STORAGE COMPARTMENT BRACKET, REMOVING AND INSTALLING .

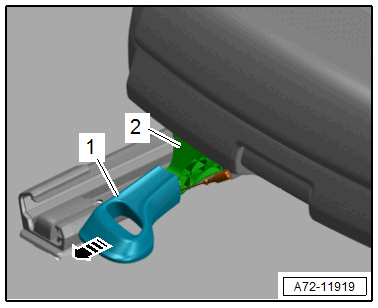

-- To release the handle push a flat-head screwdriver between the handle -1- and the handle mount -2-.
-- Remove the seat forward/back adjustment handle from the handle mount at the same time in the direction of the -arrow-.
