Owner's Manual, Fire Extinguisher And Storage Compartment Bracket, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Move the front seat all the way to the rear and then into its highest position.

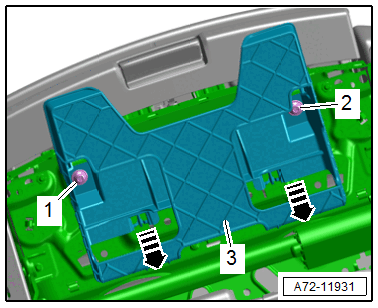

Removing the Owner's Manual Bracket:

-- Remove the bolts -1 and 2-.

-- Push the Owner's Manual bracket -3- toward the rear in direction of -arrows- and disengage the catches on the holder from the seat pan upper frame.

-- Remove the bracket from the seat pan upper frame.

Removing the Fire Extinguisher Bracket:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the fire extinguisher from the bracket.

-- Remove the bolts -1 and 3-.

-- Remove the bracket -2- for the fire extinguisher from the seat pan upper frame.

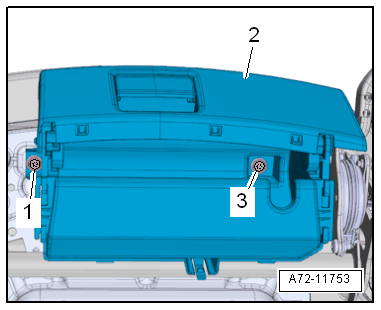

Remove the Storage Compartment:

Courtesy of AUDI OF AMERICA, LLC

-- Power front seat: move the seat angle adjuster to the center position.

-- Clean out the storage compartment -2-.

-- Remove the bolts -1 and 3-.

-- Push the storage compartment rearward -1- in the direction of the -arrow- and disengage the retainer -lower arrow- from the upper seat frame -2-.

Fig 1: Push Storage Compartment In And Disengage Retainer From Upper Seat Frame

Courtesy of AUDI OF AMERICA, LLC

-- Remove the storage compartment from the seat pan upper frame.

-- Equipped on some models: unclip the Passenger Occupant Detection System Control Module -J706-.
