Seat Height Adjustment Handle, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

Fig 1: Identifying Seat Height Adjustment Handle

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

There is a risk of destroying the seat height adjustment handle if removed improperly.

Remove the seat height adjustment handle -1- as described, do not drive it off the lever -2-.
A seat height adjustment handle with a damaged tab -arrow- must be replaced.

-- Pull the seat height adjustment handle -1- slightly upward and hold in this position.

Fig 2: Pulling Seat Height Adjustment Handle Up Hold It In That Position

Courtesy of AUDI OF AMERICA, LLC

-- Remove the seat height adjustment handle as far as possible from the front seat.

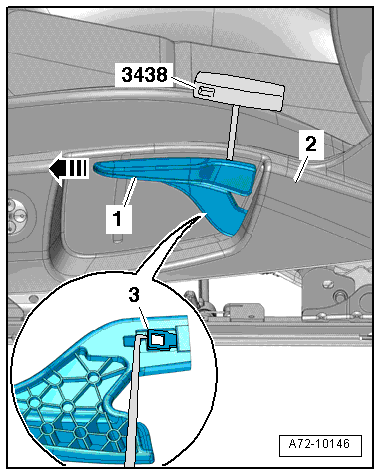

-- Guide the : 3438 between the seat height adjustment handle and seat side trim -2-.

-- Release the tab -3- with the : 3438 and at the same time remove the seat height adjustment handle in the direction of the -arrow- from the lever.

-- Remove the seat side trim on side sill side. Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING .

NOTE:

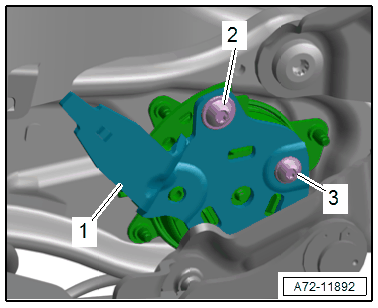

The bolt -2- and the bolt -3- are different lengths.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -2 and 3-.

-- Remove the seat height adjustment lever -1-.
