Seat Angle Adjustment Handle/Lever, Removing And Installing

WARNING: This page is about a different variant/trim than selected.

NOTE:

Removal and installation can be performed with the front seat installed.

Removing the Seat Angle Adjuster Handle:

Courtesy of AUDI OF AMERICA, LLC

-- Move the front seat all the way to the rear and then into its highest position.

-- Equipped on some models: remove the storage compartment. Refer to OWNER'S MANUAL, FIRE EXTINGUISHER AND STORAGE COMPARTMENT BRACKET, REMOVING AND INSTALLING .

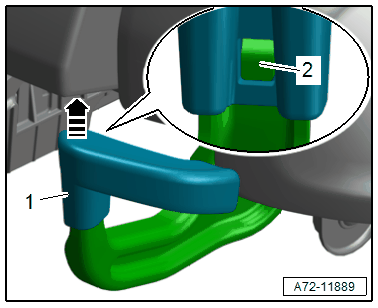

-- Push the hook -2- all the way with a small flat-head screwdriver and at the same time pry up the handle -1- for the seat angle adjuster in the direction of the -arrow-.

Removing the Seat Angle Adjuster Lever:

Courtesy of AUDI OF AMERICA, LLC

-- Move the front seat all the way to the rear and then into its highest position.

-- Equipped on some models: remove the storage compartment. Refer to OWNER'S MANUAL, FIRE EXTINGUISHER AND STORAGE COMPARTMENT BRACKET, REMOVING AND INSTALLING .

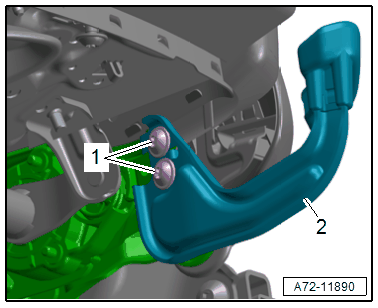

-- Remove the bolts -1 and 2- for the seat angle adjuster.

Installing

Install in reverse order of removal.
