Overview - Upper Cabin Heating

WARNING: This page is about a different variant/trim than selected.

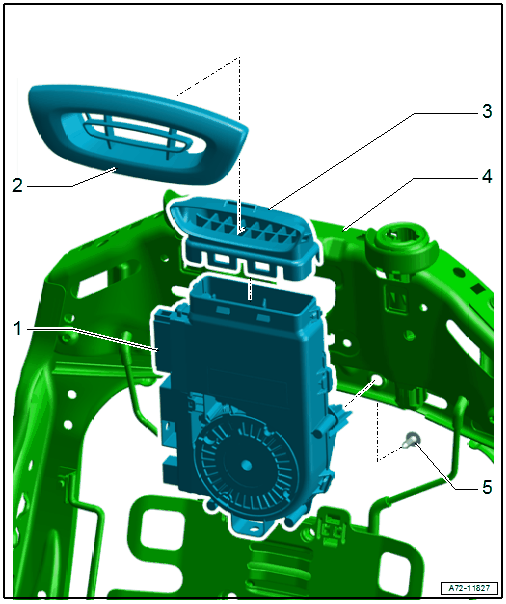

Fig 1: Exploded View Of Upper Cabin Heating

Courtesy of AUDI OF AMERICA, LLC

Upper Cabin Heating
- Driver side: Left Head Area Heater Fan -V450-
- Front passenger side: Right Head Area Heater Fan -V451-
- Removing and installing. Refer to Left Head Area Heater Fan -V450- /Right Head Area Heater Fan -V451- .
- Engage on the backrest frame
Upper Cabin Heating Vent
- Removing and installing. Refer to Left Head Area Heater Fan -V450- /Right Head Area Heater Fan -V451- .
- Clipped into the air guide
- Press on until it engages audibly
Air Duct
- Clipped into the upper cabin heating
- Removing and installing. Refer to Left Head Area Heater Fan -V450- /Right Head Area Heater Fan -V451- .
- Press on until it engages audibly
Backrest Frame
Bolt
- 3.5 Nm
- Quantity: 2
