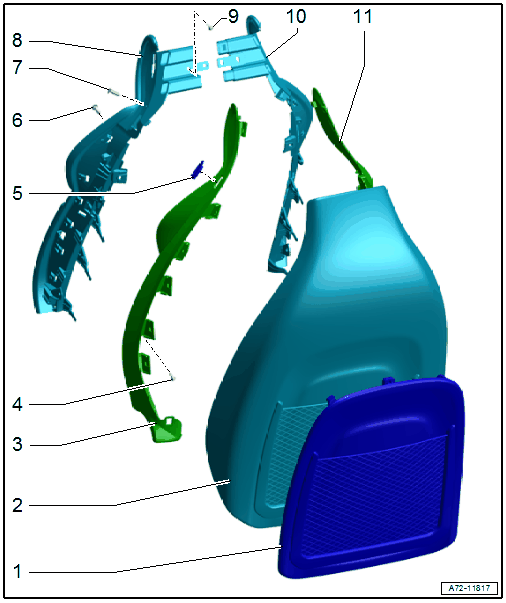

Overview - Front Backrest, Backrest Cover
WARNING: This page is about a different variant/trim than selected.
- Backrest Cover, Sport Seat
- Equipped on some models: Cargo net cannot be separated from the backrest cover.
- Removing and installing. Refer to BACKREST COVER, REMOVING AND INSTALLING, SPORT SEAT .
- Attach under the backrest frame and then press on it until it audibly locks
- Backrest Cover, Super Sport Seat
- Equipped on some models: Cargo net cannot be separated from the backrest cover.
- Removing and installing. Refer to BACKREST COVER, REMOVING AND INSTALLING, SUPER-SPORT SEAT .
- Attach under the backrest frame and then press on it until it audibly locks
- Side Trim
- Only for Super Sport seat
- Removing and installing. Refer to BACKREST COVER, REMOVING AND INSTALLING, SUPER-SPORT SEAT .
- Bolt
- 6.5 Nm
- Quantity: 2
- Backrest Release Trim
- Bolt
- 5 Nm
- Clip
- Side Bolster
- Only for Super Sport seat
- Removing and installing. Refer to SIDE BOLSTER, REMOVING AND INSTALLING .
- Bolt
- 5 Nm
- Side Bolster
- Only for Super Sport seat
- Removing and installing. Refer to SIDE BOLSTER, REMOVING AND INSTALLING .
- Side Trim
- Only for Super Sport seat
- Removing and installing. Refer to BACKREST COVER, REMOVING AND INSTALLING, SUPER-SPORT SEAT .
