Overview - Front Backrest, Backrest Adjustment Motor

WARNING: This page is about a different variant/trim than selected.

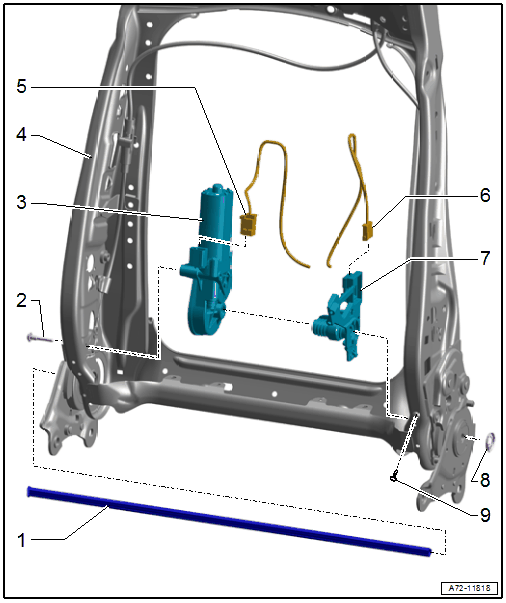

Fig 1: Exploded View Of Front Backrest, Backrest Adjustment Motor

Courtesy of AUDI OF AMERICA, LLC

Adjustment Shaft
Bolt
- 7.5 Nm
Driver Backrest Adjustment Motor -V45-
- Front passenger side: Front Passenger Backrest Adjustment Motor -V46-
- Removing and installing. Refer to Driver Backrest Adjustment Motor -V45- /Front Passenger Backrest Adjustment Motor -V46-, REMOVING AND INSTALLING .
Backrest Frame
Connector
Connector
Driver Backrest Stop Switch -E69-
- Front passenger side: Front Passenger Backrest Stop Switch -E70-
- Depending on the version
- Removing and installing. Refer to Driver Backrest Adjustment Motor -V45- /Front Passenger Backrest Adjustment Motor -V46-, REMOVING AND INSTALLING .
Lock Washer
- Replace after removing.
- Push onto the adjustment shaft so that there is still at least 1.0 mm of play
Bolt
- 4 Nm
