Backrest Cover, Removing And Installing, Super-Sport Seat: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .
CAUTION:
There is a risk of damaging the side trim.
- The side trim can be damaged relatively easily. Counterhold when removing and installing the side trim.

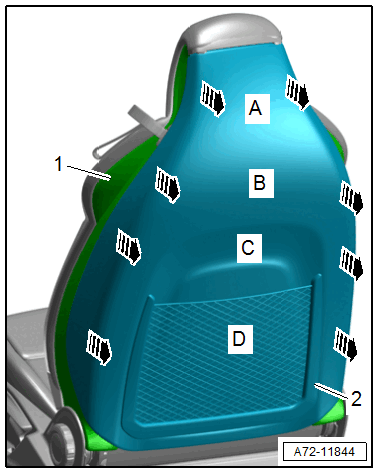

-- Pull the backrest cover and at the same time counterhold the side trim to unclip the backrest cover -2- starting at the top from the side trim -1- in direction of -arrows A to D-.
NOTE:
If it is difficult, loosen the catches using the : T10383 .
Remove the Side Trim:

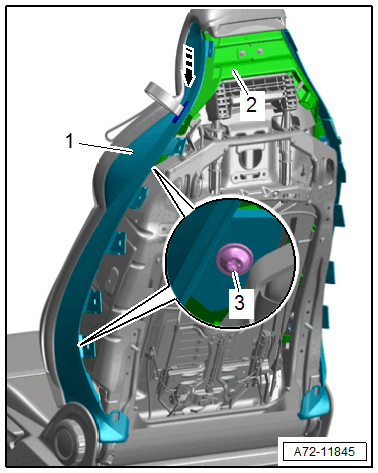

-- Remove the bolts -3- with the commercially available ball TORX® .
NOTE:
If the bolts -3- cannot be unscrewed, loosen the thorax airbag guide plate. Refer to FRONT SIDE AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
-- Remove the side trim -1- downward from the side bolster -2- -arrow- and remove.
