Backrest Cover, Removing And Installing, Sport Seat: Removing

WARNING: This page is about a different variant/trim than selected.

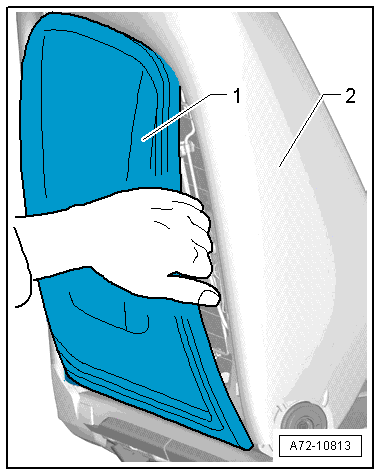

Fig 1: Backrest Cover -1-, Backrest -2-

Courtesy of AUDI OF AMERICA, LLC

-- Move the front seat all the way forward into the lowest position and move the backrest toward the front.

WARNING:

Danger of being injured by burrs on the backrest cover.

-- Reach behind the backrest cover -1- and pull the cover off the backrest frame to the right as illustrated.

NOTE:

If this is difficult, loosen the side hooks with a Pry Lever: 80-200 .

-- Repeat the procedure on the opposite side.

-- Continue to remove the backrest cover and roll it up until the upper hooks detach from the backrest frame.

-- Remove the backrest cover from the backrest -2- upward.
