Backrest Cover, Removing And Installing, Sport Seat: Installing
WARNING: This page is about a different variant/trim than selected.
Install in reverse order of removal and note the following:

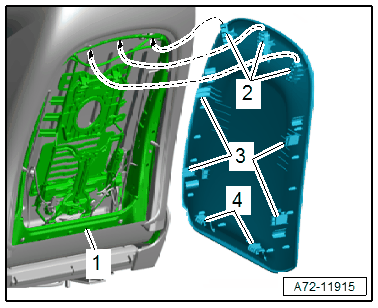

-- Install the backrest cover with hooks -2- at the top of the backrest frame -1-.
-- Tilt the backrest cover down and engage the side tabs -3- and the lower hooks -4-.
-- Make sure the tabs on the side fit correctly into the backrest frame and the lower hooks are bent correctly over the backrest frame.

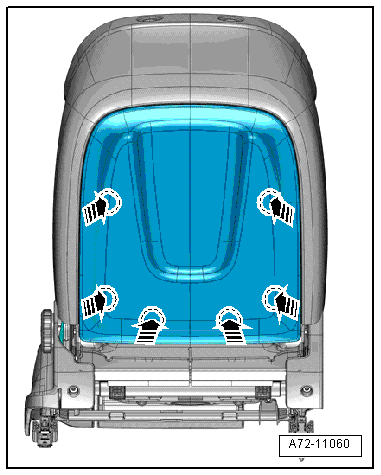

-- Push forcefully on the backrest cover on the areas marked with the in direction of -arrows- until the tabs and hooks click into place.
-- Check if the backrest cover is correctly latched.
- It must not be possible to move the backrest cover at the bottom.
