Backrest Release Trim, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

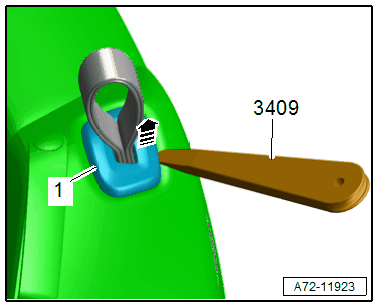

GWWA72-11923Courtesy of AUDI OF AMERICA, LLC

Sport Seat:

-- Unclip the trim -1- for the backrest release on both sides alternating from side to side in direction of -arrow- using the : 3409  .

-- Guide out the pull strap and remove the trim.

Super Sport Seat:

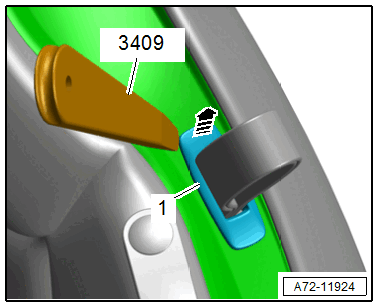

GWWA72-11924Courtesy of AUDI OF AMERICA, LLC

-- Unclip the trim -1- for the backrest release starting at the top using the : 3409  in direction of -arrow-.

-- Remove the trim upward, guide out the pull strap and remove.
