Front Passenger Multi-Contour Seat Control Module -J872- /Driver Multi-Contour Seat Control Module -J873-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different variant/trim than selected.
WARNING:
- Follow all safety precautions when working on pyrotechnic components. Refer to SAFETY PRECAUTIONS FOR PYROTECHNIC COMPONENTS .
- Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker pin, for example.
-- Remove the backrest cover. Refer to BACKREST COVER, REMOVING AND INSTALLING, SPORT SEAT .
-- For reinstallation, mark pneumatic lines at the separating point with a waterproof permanent marker.

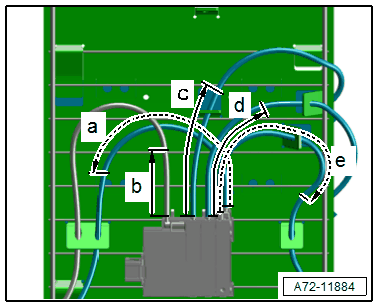

-- Disconnect the pneumatic line at the following locations. Refer to PNEUMATIC LINES, DISCONNECTING AND CONNECTING .
- -a- = 200 mm
- -b- = 50 mm
- -c- = 100 mm
- -d- = 100 mm
- -e- = 200 mm

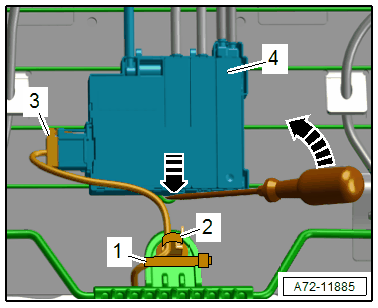

-- Disconnect the cable tie -1- and remove the wire clip -2-.
-- Press the release button and disconnect the connector -3-.
-- With a screwdriver push down the spring mat bar in direction of -arrows- and remove the multi-contour seat control module -4-.
