Driver Multi-Contour Seat Compressor -V439- /Front Passenger Multi-Contour Seat Compressor -V440-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different variant/trim than selected.
WARNING:
- Follow all safety precautions when working on pyrotechnic components. Refer to SAFETY PRECAUTIONS FOR PYROTECHNIC COMPONENTS .
- Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker pin, for example.
-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

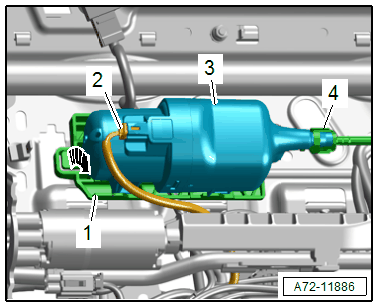

-- Push the release ring and disconnect the pneumatic line -4- on the compressor.
-- Disconnect the connector -2-.
-- Push the release button in direction of -arrow-.
-- Slide the compressor for the multi-contour seat -3- to the side from the bracket -1-.
