Connection Diagram - Pneumatic System
WARNING: This page is about a different variant/trim than selected.

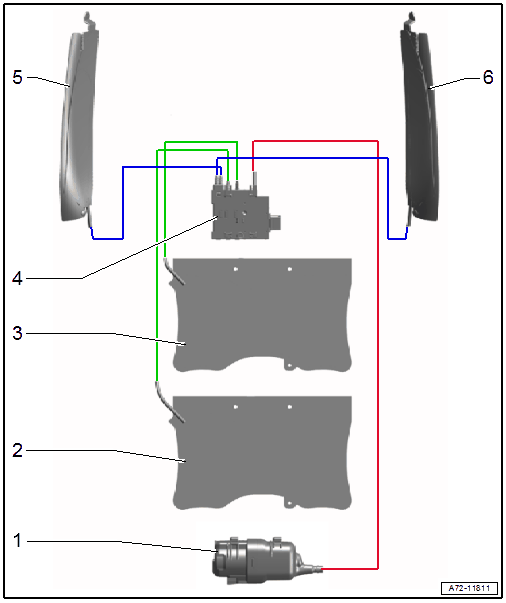

- Driver Multi-Contour Seat Compressor -V439-
- Front passenger side: Front Passenger Multi-Contour Seat Compressor -V440-
- Lower Air Cushion
- For the lumbar support
- Upper Air Cushion
- For the lumbar support
- Driver Multi-Contour Seat Control Module -J873-
- Front passenger side: Front Passenger Multi-Contour Seat Control Module -J872-
- Right Air Cushion
- For the backrest bolster adjuster
- Left Air Cushion
- For the backrest bolster adjuster
