Dryer Cartridge, Removing And Installing, MODINE Condenser: Installing

WARNING: This page is about a different variant/trim than selected.

Install in reverse order of removal and note the following:

Tightening specification. Refer to OVERVIEW - CONDENSER, A/C COMPRESSOR, REFRIGERANT LINES AND EXPANSION VALVE .

NOTE:

Replace the plug, O-ring and dryer cartridge after every opening of the receiver/dryer. Refer to Parts Information.

-- Using the opening, inspect the receiver/dryer on the condenser for dirt and damage on the threaded- and sealing surfaces.

Version "1" :

Fig 1: Identifying Removal Of Filter (Strainer) From Fluid Container With Welding Wire

Courtesy of AUDI OF AMERICA, LLC

-- Insert the filter element (with screen) -2- into the condenser receiver/dryer on the proper side.

The filter element must be inserted in up to the stop (over the ridges near the bottom).

NOTE:

Keep the dryer cartridge sealed in its air-tight package as long as possible. Open the package just before installing the dryer cartridge into the condenser. The dryer cartridge absorbs moisture from the surrounding air in a very short time and becomes unusable.

-- Remove the dryer cartridge from the package and insert it into the condenser receiver/dryer.

Version "2" :

Courtesy of AUDI OF AMERICA, LLC

-- Remove the dryer unit -1- from the package and insert it into the condenser -2-.

Continuation for All Versions:

Fig 2: Identifying Removal Of Cover And Circlip

Courtesy of AUDI OF AMERICA, LLC

-- Insert the closure cap -1- and push it far enough downward so that the snap ring -arrow- can engage in the groove.

NOTE:

Coat the O-ring for the closure cap with refrigerant oil before installing. Refer to REFRIGERANT CIRCUIT SEALS .

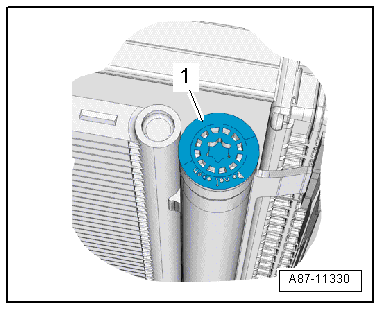

-- Version "1" : Press on the protective cap.

Courtesy of AUDI OF AMERICA, LLC

-- Version "2" : Install the protective cap using the Dryer Element Plug Socket :T10128 .

-- Attach the safety warning label (if equipped).

-- Evacuate and charge the refrigerant circuit. Refer to Refrigerant Circuit (Refrigerant R134a Servicing, Refrigerant Circuit, Working with A/C Service Station) or Working with A/C Service Station (1 Of 2) / Working with A/C Service Station (2 Of 2) .

-- Operate the A/C system after charging the refrigerant circuit. Refer to A/C SYSTEM, STARTING AFTER CHARGING REFRIGERANT CIRCUIT .

-- Check the DTC memory and erase any displayed entries using the Vehicle Diagnostic Tester in the"Guided Fault Finding" function.
