Additional Weight On Refrigerant Line
WARNING: This page is about a different variant/trim than selected.
NOTE:

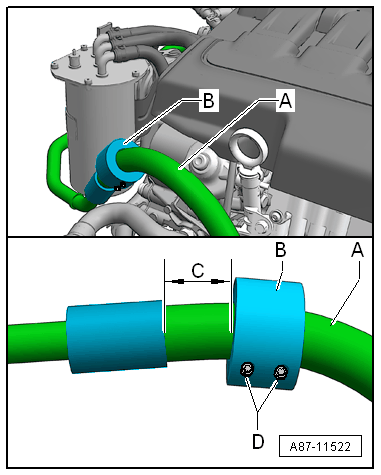

An additional weight (balance weight, resonator in the refrigerant line to reduce noise) -B- may be present on the refrigerant line -A- depending on the vehicle and refrigerant line version and the production period. Refer to the Parts Information.
Make sure that this additional weight -B- sits securely on the refrigerant line and does not touch or can come in contact with other components during operation (noise).
The refrigerant line -A- must not be crushed by the additional weight -B-.
- Bolt tightening specification -D- : 10 Nm
- Dimension -C- : 30 mm
