Evaporator, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the heater and A/C unit. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .

-- Remove the Fresh Air Blower -V2-. Refer to Fresh Air Blower -V2-, REMOVING AND INSTALLING .

-- Remove the air intake duct. Refer to AIR INTAKE DUCT, REMOVING AND INSTALLING .

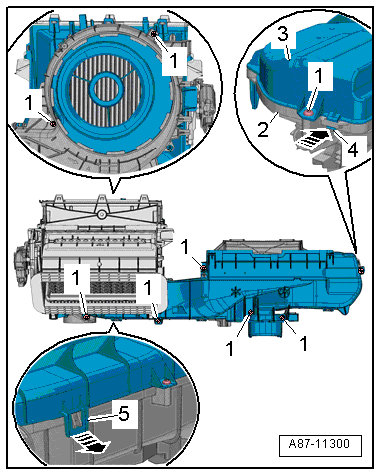

-- Remove the bolts -1-.

-- Release the tabs -4 and 5- -arrows-.

-- Remove the evaporator housing upper section -3- from the lower section -2-.

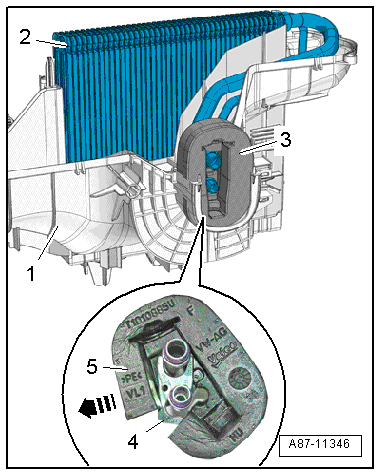

-- Remove the evaporator -2- from the evaporator housing lower section -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the expansion valve. Refer to EXPANSION VALVE, REMOVING AND INSTALLING .

-- Remove the seal/insulation -3- by pulling the moving part -5- to the side in direction of -arrow-.

-- Remove the retainer -4- for the refrigerant lines.
