Air Distribution Housing, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the heater and A/C unit. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .
-- Remove the coolant pipes from the heater core. Refer to HEATER CORE, REMOVING AND INSTALLING .
-- Disconnect the connector from the fresh/recirculated air door motor and free up the wiring harness.

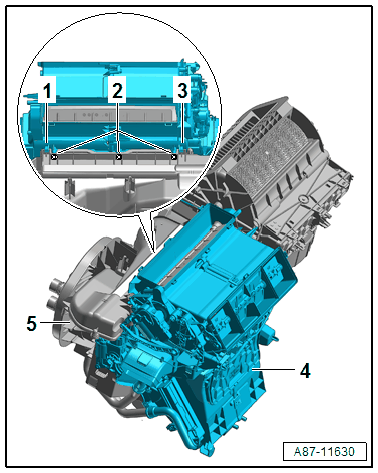

-- Remove the screws -2-.
-- Release the tabs -1 and 3-.
-- Pivot the air distribution housing -4- toward the rear -arrow-, disengage it and disconnect it from the evaporator housing -5-.
